| 系列 | PHPK | 品牌 | BERARMA | | 型号 | PHPK | 规格 | PHPK |

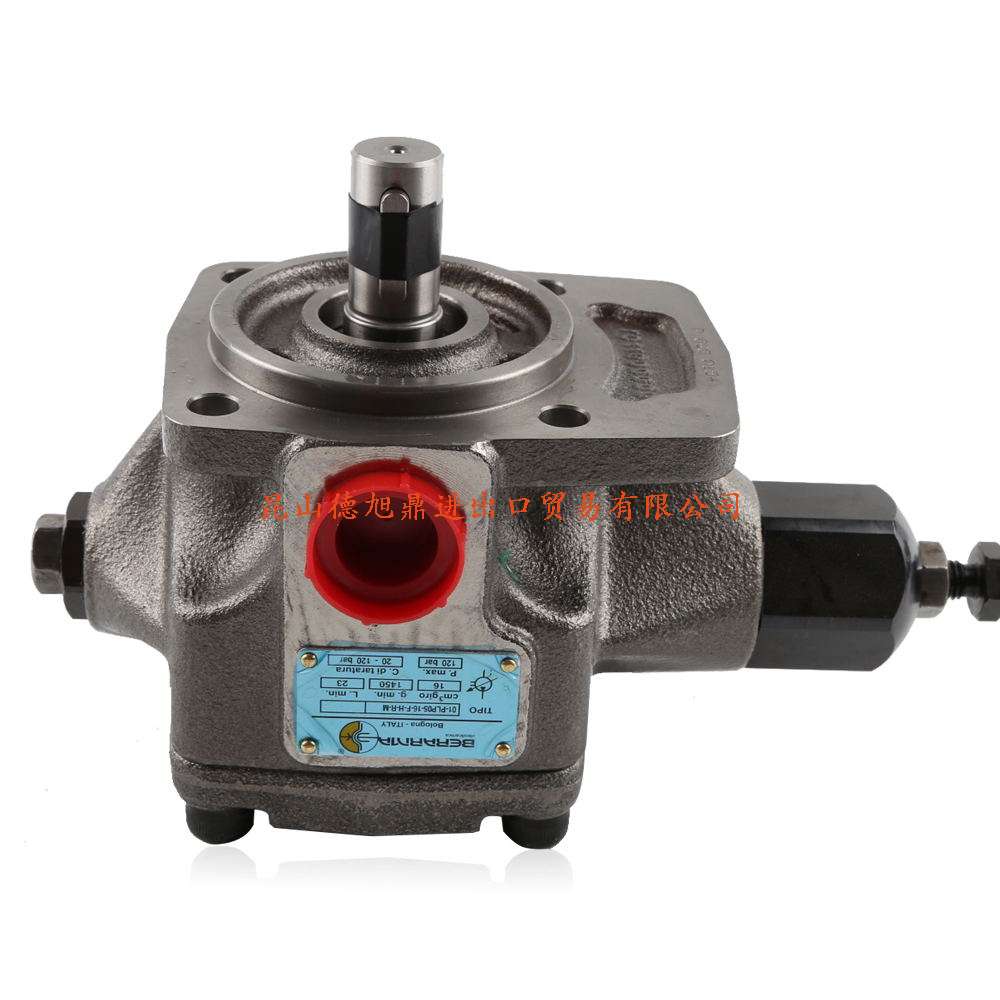

意大利BERARMA叶片泵PHPK系列
| Series/Model Code | Geometric Displacement (cm3/rev) | Max Flow Rate at 1450 rpm (l/min) | Max Operating Pressure (bar) | Speed Rotation Range (rpm) |
|---|
| 01-PHPK-1-20 | 20 | 29 | 180 | 800 – 1800 | | 01-PHPK-1-25 | 25 | 36 | 180 | 800 – 1800 | | 01-PHPK-1-32 | 32 | 47 | 180 | 800 – 1800 | | 01-PHPK-2-40 | 40 | 58 | 180 | 800 – 1500 | | 01-PHPK-2-50 | 50 | 73 | 180 | 800 – 1500 | | 01-PHPK-2-63 | 63 | 92 | 180 | 800 – 1500 | | 01-PHPK-3-80 | 80 | 116 | 180 | 800 – 1500 | | 01-PHPK-3-100 | 100 | 145 | 180 | 800 – 1500 | | 01-PHPK-3-120 | 120 | 174 | 180 | 800 – 1500 |
Main Features:
ROTATION DIRECTION: Right hand (clockwise – viewed from shaft end ) MOUNTING FLANGE : Flange 4 bolt (UNI ISO 3019/2) PORT CONNECTION : GAS BSP(UNI ISO 228/1) threads and SAE PRESSURE COMPENSATOR: Hydraulic , piloted with horse power limiter device OTHER: Integrated machanical displacement limiter as standard on all pumps. Set up for combined pumps on request.
PRESSURE-FLOW Control Solutions:
Single pressure stage hydraulic control PCS002 Hydraulic control with remote pressure setting PCS003 Hydraulic control with two stages of pressure of which one with fixed setting
意大利BERARMA公司是一家有着30年生产变量叶片泵的专业厂家！变量泵规格从6cc/rev到200cc/rev，持续工作压力达到160mpa，产品特点具有高精度，低噪音的特点，广泛用于各个制造行业！
在过去30年中，根据我们的丰富的经验，我们已经能够满足很高的技术要求，高性能和低噪音水平的特点，使我们成为液压行业中的佼佼者。
意大利BERARMA泵产品已经响应用户的不同需要，进行灵活的模块化设计，在尽可能短的时间内，达到此项技术要求。
VANE PUMP MANUFACTURERS SINCE 1963FROM TRADITION TO INNOVATIONWe were in 1963 when the passion for mechanics pushed Martino Cavazza and Arturo Berni, both natives of Mantua, to found the AR.MA SDF. The first location was a small garage 70 m2 large in Porrettana Street, where the two “brave” entrepreneurs began on their own to custom mechanical pieces for third parties, working for the most important industries in Bologna, using the traditional manifacturing tools. Never satisfied by their work and taking advantage by the market opportunities, they decided, some years later, to startthe design and manufacturing of the first variable displacement vane pump.A VANE PUMP BRAND RECOGNIZED AROUND THE WORLDThe positive trend in the vane pump businessled, in a short time, on one side to change the company name from AR.MA to BERARMA Srl (24 January 1970), and on the other side to move to a new corporate headquarters, still used today, that is much larger (2,000 m2), located in the industrial area of Via Parini 9 in Casalecchio di Reno (Bologna). In more than 40 years after its birth Berarma reached ahigh technological know-how becoming a dynamic and modern vane pump brand recognized around the world. The philosophy of the founder and current CEO, Martino Cavazza, has always been the technological innovation research, combined with a great attention to the customer needs.A STRONG NETWORKBerarma has always believed in the power of business network and relationships; indeed we are proud partner of strong associations asConfindustria Emilia, AssofluidandCetop.A NEW PRODUCT FAMILYA rigorous system of internal quality control and management process (Certified Company according to the new ISO 9000: 2008), together with the use of machine tools, powerful technology and rigorous testing on all components, allow Berarma to ensure ahigh standard of quality of vane pumpsand all the other products. A modern R&D department is working to improve the Berarma products, adapting them to the modern technological standards required by the market. This activity has led to the creation of anew family of variable displacement vane pumps, called PHV,used for high pressure (250 bar). This new series of vane pumps, together with the traditional Berarma pumps -types PVS, PSP, PSPK- and the groups of motor pump -type GMP (group consisting of a Berarma pump and an electric motor with special flanging for direct transmission of motion)- were designed to obtain the following features:- Silent running;
- High efficiency and long working life;
- Economy and simplification of hydraulic system;
Modularity and flexibility to meet the diverse needs of users: a common pump body to each size on which you can assemble various types of pressure-flow control, mounting the Berarma non return valves with SAE flange type NRV, and match more pumps each other (Combined Pumps Solution).
Surfing our website you will find all the products’ details anddownload the catalogues.Feel free tocontact usif you need to know more about our products.
|
